Sizing Screens

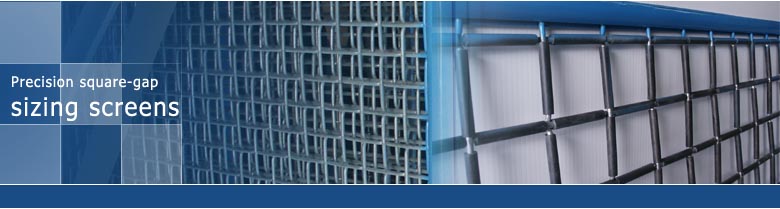

CDM square-gap sizing screens are precision manufactured to deliver the highest degree of sizing accuracy and gentle handling possible. CDM screens are hand woven from high grade precision pressed galvanized steel rods and can be optionally outfitted with weather-proof rubber sheathing to afford the potatoes/onions maximum protection throughout the sizing process. All CDM sizing screens are enclosed in a contoured welded steel frame designed to maintain the accuracy and integrity of the sizing gap under the most rigorous of handling conditions.

Screens larger than 49mm. are specially cross welded to ensure extra strength and durability especially effective when subjected to damp and wet working environments. CDM maintain a complete inventory of rubber cushioned screens (1000mm. x 1300mm. frame) with gap sizes 25mm. to 95mm. inclusive readily available for immediate shipment. Incremental gap sizes and custom screen dimensions to fit all makes of European and North-American sizers are available upon request.

  Advantages of CDM sizing screens:
Superior sizing accuracy and gentle handling (proven industry benchmark)
Very affordable price (manufactured in Canada)
Immediate availability(all sizes 25mm. - 95mm. from inventory)
Fractional sizes(readily available upon request)
Secure gap calibration(standard cross-member welding on sizes 50mm.+)
High accuracy, heavy gauge galvanized pressed rod
Supreme quality, durable rubber sleeves
Increased sizing surface area by 51sq. in. (as compared to wood-frame screens)
Rugged and Sturdy frame construction
Prompt and courteous service
